Modular Drawers Evo

Description

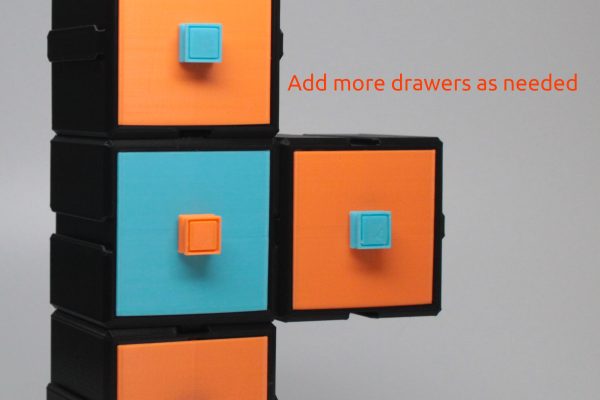

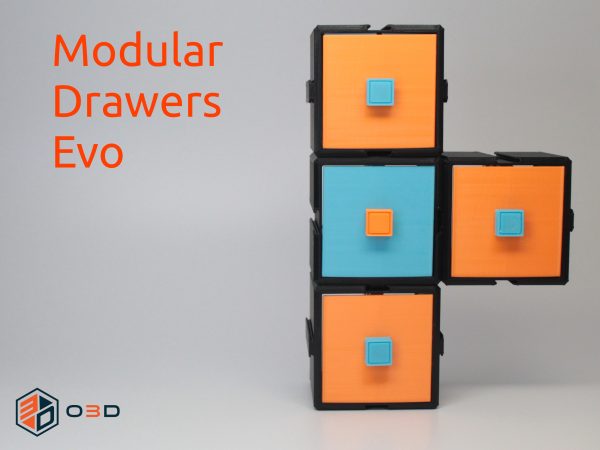

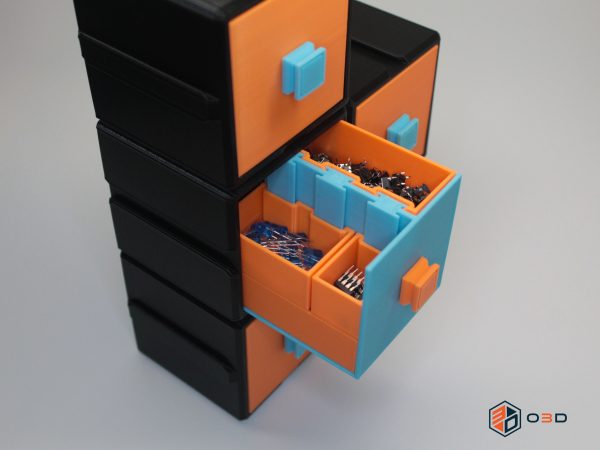

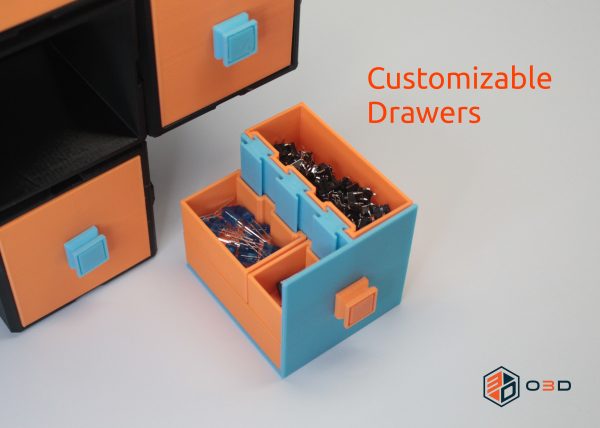

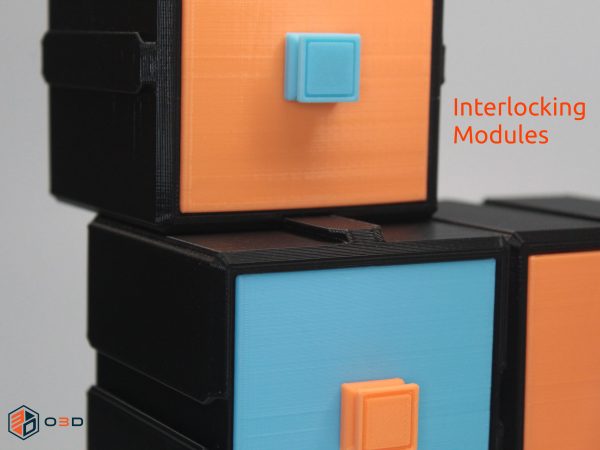

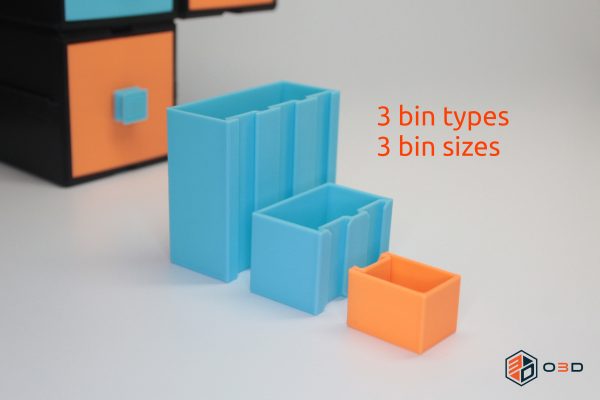

Modular Drawers Evo is a customizable, modular drawer system perfect for Engineers, Makers, and Hobbyists! Organize all your small parts from nuts and bolts to resistors, switches, and LED bulbs. No workshop is complete without an organization system! Features: 2 types of drawers – modular and single bin 3 bin types – small, medium, and large 3 bin sizes – 1/3 height, 1/2 height, and full height 2 drawer modules Print at 80-90 mm/s without supports or rafts! Rail and Slot test pieces have been added for users to optimize their print settings. Questions? Need support? Send a personal message Tips: The knob should fit easily in the drawer. If it does not for some reason reprint the knob at 99%. Forcing the knob could cause the drawer to crack. Glue the knob to the drawer Print the rail and slot tests first to optimize your print settings. Faster speeds may cause slight warping which will affect the fit of the rails in the slots. The modules shown in the pictures were printed at 85mm/s. Recommended Settings: 0.3mm 80-90mm/s fast print module and all other components 60mm/s for regular module 5%-10% infill for module 10%-15% infill for drawers
